Product
Name

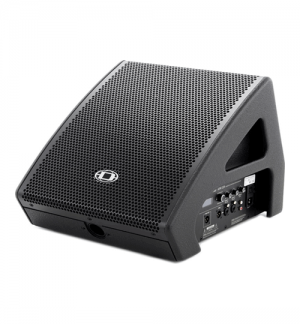

AXM 12A
Manufacturer
DynacordCategory
- Full range 12"
- Coaxial monitor 12"
- Self powered 12"
Main parameters
| Type: | Self Powered 12" monitor, Coaxial | |
|---|---|---|
| Frequency range: |
50 Hz - 20000 Hz (-10dB) |
|
| SPL (1W/1m) [dB]: | --- | |
| SPL max [dB]: | 128 dB | |
| Dispresion: | 90° | |
| Self powered: | ||
| AES Power: | --- | |
| RMS Power: | 335 W | |
| Program Power: | --- | |
| Max Power: | 520 W | |
| Impedance | --- |
Components
| LF speaker: | 1 x 12" (ND) | |
|---|---|---|
| MF speaker: | --- | |
| HF speaker: | 1 x 1" (ND) |
Physical
| Cover: | Plywood | |
|---|---|---|
| Finish: | Structural paint | |
| Height: | 414 mm | |
| Width: | 339 mm | |
| Depth: | 484 mm | |
| Weight: | 14 kg |
Others
| Stand socket: | ||
|---|---|---|
| Flying: | ||
| Accessories: | --- | |
| Connectors: | XLR, RCA, 1/4" TRS | |
